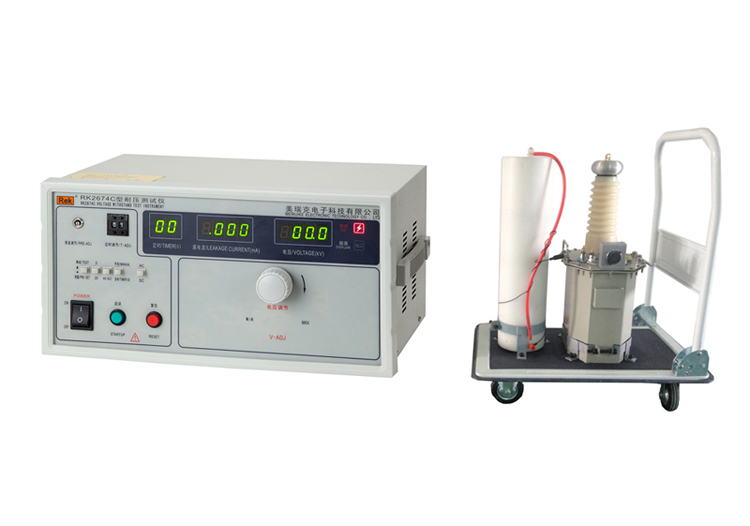

0～25kv/50kv AC 0-2/20/40mA / DC 0-2/10mA Hipot Tester
Technical Parameters:
| Model | LX-2674C |
| Output Voltage | 0～25kv/50kv |
| Voltage Resoulation | 100V |
| Voltage Accuracy | ±5% |
| Leakage Current (AC) | 0-2/20/40mA |
| Leakage Current (DC) | 0-2/10mA |
| Current Resolution |
0～2mA:1μA 2～20mA:10μA |
| Current Accuracy | ±5% |
| Test time | 0~99 s ,manual control |
| Max Outpower | 1000VA |
| Transformer Capacity | 2000VA |
| Display Models | LED |
| Input Voltage Request | 220V±10%,50Hz±5% |
| Working Environment | 0℃～40℃，≤85%RH |
