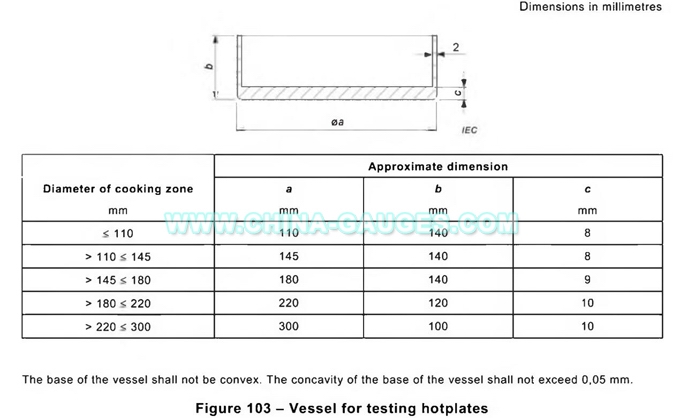

Vessel for Testing Hotplates of IEC 60335-2-9:2016 Figure 103


1. The vessels are made of unpolished commercial quality aluminium, have a flat bottom and are covered with a lid.

2. The vessels are met the requirements of IEC 60335-2-9 Figure 103, EN 30-1-1 2008 (E) Annex C2 etc standards.


3. Normal operation: Hotplates, other than induction hotplates, are operated with vessels containing water. Controls are adjusted to their highest setting untill the water boils and then adjusted so that the water simmers. water is added to maintain the level during boiling.


4. Parameters:

Diameter of cooking zone
mm

Approximate dimension

a
mm

b
mm

c
mm

≤110

110

140

8

> 110 ≤ 145

145

140

8

> 145 ≤ 180

180

140

9

> 180 ≤ 220

220

120

10

> 220 ≤ 300

300

100

10

NOTE: The maximum concavity of the vessel is to be not more than 0,05 mm. The base of the vessel is not to be convex.
